Odontoestomatología vol.20 no.32 Montevideo dic. 2018


MCM2-7 complex: a review

Delmira Apellániz1

Vanesa Pereira-Prado2

Gabriel Tapia-Repetto3

Ronell Bologna-Molina4

1 Área de Patología Molecular Estomatológica, Facultad de Odontología, Universidad de la República, Uruguay.

2 Área de Patología Molecular Estomatológica, Facultad de Odontología, Universidad de la República, Uruguay.

3 Cátedra de Histología, Facultad de Odontología, Universidad de la República, Uruguay.

4 Cátedra de Histología, Facultad de Odontología, Universidad de la República, Uruguay.


New cells are formed from preexisting cells through an ordered series of events called cell cycle. As the control of this cycle is fundamental for genome integrity, multiple proteins regulate this process. We currently know that the MCM2-7 complex has a major role in DNA replication in the cell cycle, in particular regarding proliferation. The immunohistochemical identification of the proteins in this complex on tissues may be useful, as they could be used as biomarkers and would help us understand one of the biological mechanisms affected in cancer processes.

Our aim is to collect the existing evidence regarding the members of the MCM2-7 complex, since these proteins could be effective biological cell proliferation markers, which would help practitioners make accurate diagnosis, prognosis and future therapeutic targets of lesions that are mainly neoplastic, especially in the oral mucosa.

Keywords: MCM2-7 complex; cell proliferation; tumors


La formación de nuevas células se genera a partir de células preexistentes a través de una serie ordenada de eventos denominada ciclo celular. El control de este es fundamental para la integridad del genoma, por lo que hay múltiples proteínas regulando este proceso. Actualmente, se conoce que el complejo MCM2-7 tiene un rol esencial en la replicación del ADN, específicamente involucrado en la proliferación, durante el ciclo celular. La identificación inmunohistoquimica de las proteínas de este complejo a nivel tisular, podría ser una herramienta muy útil, para usarlos como biomarcadores y así comprender uno de los mecanismos biológicos que se ven afectados en el cáncer.

Nuestro objetivo es realizar una revisión del complejo MCM2-7, ya que estas proteínas como se ha descrito, podrían comportarse como buenos marcadores biológicos de proliferación celular, y así poder realizar un buen diagnóstico, pronóstico y futuros blancos terapéuticos de aquellas lesiones principalmente neoplásicas , principalmente las que asientan a nivel de la mucosa bucal.

Palabras clave: complejo MCM2-7; proliferación celular; tumores.


New cells are formed from preexisting cells through an ordered series of events called cell cycle. The cycle is divided into four phases: G1, S, G2 and M (Fig.1). Although the cycle can be addressed conceptually from any phase, it is usually analyzed from the G1 phase. This is the phase immediately after mitosis (M): the cell grows because of different events that include synthesis of RNA, proteins and other cell elements. The following stage is called S phase, where the cell replicates the entire chromosomal DNA, leading to duplication. The centrioles and the centrosome also duplicate, which will be essential for the M phase (mitosis) to occur in this cycle.

The next phase is called G2 and separates the S phase from mitosis. Here, there is rapid cell growth and DNA security molecular mechanisms are activated. They are used to search for errors in the DNA sequence. If such errors are detected but not corrected, mechanisms that prevent the cycle from developing are triggered. When the absence of errors is verified and G2 is complete, the M phase begins, which is where the process of mitosis occurs. This is divided into four stages (prophase, metaphase, anaphase and telophase), where the mother diploid cell produces two diploid daughter cells1.

Some cells may remain in a state of basal metabolism without dividing or replicating their DNA. These cells are in G0 phase or in a quiescent state (Fig. 1), which can be a transitory state, where the cell is stimulated and re-enters the cell cycle, or a permanent state, where the cell never divides again1.

Cell proliferation is an increase in the number of cells, a result of cell division. It is more active during embryogenesis and the development of an organism, but continues throughout life, as it is necessary for tissue homeostasis 1.

As the control of this cycle is fundamental for genome integrity, multiple proteins regulate this process. If this regulation is lost, diseases such as cancer may appear, where a cell makes up a cell line with unlimited and uncontrolled cell proliferation capacity due to genetic mutations 1.

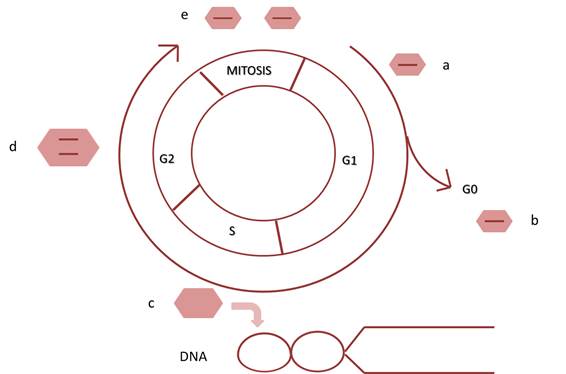

Fig. 1:  Cell cycle

Identifying the proteins involved in the cell cycle allows us to use them as biomarkers of cell proliferation (through immunohistochemistry, essential technique in the pathological diagnosis of cancer), which are useful for the diagnosis, prognosis and treatment plan of different neoplasms, as several experimental research studies suggest.

Our aim is to collect evidence of the MCM2-7 complex (biological proteins involved in the cell cycle and its control) and to identify and mark defective mitosis, particularly in pre-malignant or potentially cancerous oral pathologies such as leukoplakia (in its different forms) actinic cheilitis, lupus erythematosus and lichen planus, all of which tend to become cancerous lesions.


We conducted a literature review in the electronic database PubMed throughout 2017. The review included articles published in the previous 15 years and reference texts on the subject reviewed, using the following terms in English: “complex MCM2-7, cellular proliferation, cancer”. We included 45 articles in English to guide this literature review.


MCM2-7 complex (minichromosome maintenance)

The MCM2-7 complex was recognized in 1980. It has a toroidal structure and includes six different proteins (MCM2, MCM3, MCM4, MCM5, MCM6, MCM7) 2.

The MCM2-7 complex is part of the pre-replicative complex, so it plays an essential role in DNA replication 3 (Fig. 2). Therefore, it would be useful to know how it participates in the cell cycle to understand one of the biological mechanisms affected in cancer processes.

Pre-replication complex

The MCM7 protein, along with MCM2, MCM4 and MCM6, have DNA-helicase activity, so they could act as enzymes that unwind DNA.

The pre-replicative complex is formed near the end of mitosis and in early G1 phase. It includes the origin recognition complex (ORC), cell division cycle 6 (Cdc6) and MCM2-7 4-5) (Fig. 2). This complex marks the DNA fragment where replication will start. In the S phase of the cell cycle, the pre-replicative complex is activated, giving rise to DNA replication 6-7) (Fig. 2). Once replication is complete, the complex dissolves and its components are destroyed 4.

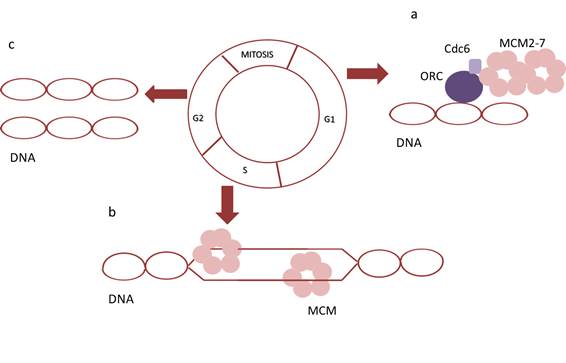

Fig. 2

The activity of MCM proteins is highly regulated by a cyclin-dependent kinase (CDK), which has low levels at the end of mitosis and during early G1. Therefore, it promotes the formation of the pre replicative complex and increases at the end of phases S and M. This leads to the phosphorylation of the MCM2-7 complex components, making them exit the cytoplasm and degrade 4-5.

MCM functions

As mentioned above, the complex has an essential role in DNA replication 8-9.

  • 1. It starts the replication process at the right time, for which it must change its three-dimensional structure. When inactive, the MCM2-7 complex has a reversible discontinuity in its toroidal structure. As MCM2 and MCM5 bind, they close this discontinuity, which allows the MCM2-7 complex to activate 10-11 (Fig. 3).

  • 2. Helicase function: after the MCM2-5 discontinuity is closed, the MCM2-7 complex begins to unwind the two DNA strands for replication to occur. Helicase activity has been demonstrated in vitro for the MCM4, 6 and 7 subcomplex 12

  • 3. It stops replication: if damage is detected in the DNA, the MCM2-7 complex stops helicase activity 13.

  • 4. It ensures the entire DNA is replicated: cue to the large size of the chromosomes, thousands of sites are necessary for replication to begin 7. However, only some of the multiple sites that have the pre-replicative complex are used. The others remain dormant, and if there is replicative stress, they are activated, which is why all the DNA must be replicated 14

  • 5. It prevents repeated DNA replication 15. Once the DNA is replicated, they are exported to the cytoplasm and degrade their components4.

  • According to Nguyen 2000, all the proteins that form the MCM2-7 complex have the same localization pattern in the cell cycle, and once replication is complete, they are exported to the cytoplasm.

  • However, contrary to this author, more recent genetic and biochemical studies show that the MCM2-7 complex subunits have different functions 16-18.

  • As mentioned above, helicase activity has been demonstrated in vitro for the MCM4, 6 and 7 subcomplex 12, while MCM2, 3 and 5 are responsible for activating and deactivating the complex 10-11.

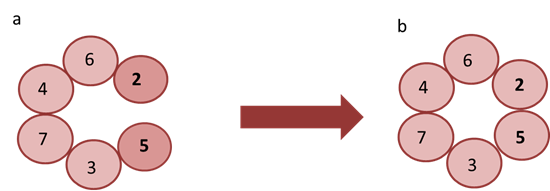

Fig. 3

Given the high activity of the MCM2-7 present in the cells during the cell cycle, and the fact that these proteins are absent in quiescent cells, the different proteins in the MCM2-7 complex could be good markers of cell proliferation 19, possible biological markers for diagnosis and prognosis 20-21 and future therapeutic targets 22. It has been shown that several tumor suppressors can inhibit MCM 2-7 activity 22.

Role in carcinogenesis

Overexpression of MCM proteins has been demonstrated in a variety of neoplasms. MCM2 expression is increased in bladder carcinoma (23, ovarian adenocarcinoma 24, proliferative verrucous leukoplakia25, oligodendrogliomas 26, renal cell carcinoma 27 and breast cancer28. Also, MCM3 in papillary thyroid carcinoma 29, MCM4 in small cell lung cancer 30 and cutaneous melanoma 31, MCM5 in gastric adenocarcinoma 32, bladder carcinoma 23, ovarian adenocarcinoma 24, squamous cell carcinoma of the skin 33, cervical cancer 34, squamous cell carcinoma of the buccal mucosa (35and proliferative verrucous leukoplakia25, MCM6 in hepatocellular carcinoma 36 and MCM7 in prostate cancer 37, colon cancer 38 and pulmonary adenocarcinoma 39.

These are just some of the many studies that have shown the overexpression of the different proteins of the MCM complex in various neoplasms. Therefore, they conclude that these proteins could be good cell proliferation markers.

It has been shown that the deregulation of MCM proteins is an early event in tumor development. It is therefore suggested that these biomarkers can be very useful in the primary diagnosis and monitoring of the tumor (28, 40-41).

According to Williams, 1998, MCM5 has high sensitivity and specificity to detect malignant precursor cells by using immunoperoxidase or immunofluorescence in Pap smears. Williams proposes this diagnostic method as an additional test besides Pap smear to decrease false-negative rates 40. Furthermore, Williams, 1998 and Strober 2002 understand that high levels of MCM5 in urine are highly predictive of bladder cancer 40-41.

There are several authors who conclude that these proteins are superior to conventional markers such as Ki-67, since they have higher expression and therefore better diagnostic sensitivity 25,42-43.

Higher expression of this complex, compared to Ki67 expression can be explained in two ways:

  • 1. As mentioned above, we find more pre-replicative complexes than the ones used to initiate replication. The others remain dormant to be activated if there are problems in some of the replication forks. This number of pre-replicative complexes, and therefore of the MCM2-7 complex, is what is referred to as “excess MCM” 42.

  • 2. Ki-67 is expressed in the middle of the G1 phase 44, while as mentioned above, the pre-replicative complex and therefore MCM2-7 is expressed at the beginning of the G1 phase 45.


As shown, MCM complex proteins and, more specifically MCM 2 and 5, could act as good biological markers of cell proliferation, as is clear from the results of the research conducted. Altered or defective tissue immunoexpression would be an effective complementary diagnosis and prognosis tool, as well as future therapeutic targets. Therefore, we must improve our knowledge in the area, both from a functional perspective and regarding its participation in various biological processes. This would help practitioners detect neoplastic lesions early, including oral cancer, in their clinical practice, and therefore select the right therapy.


1. McInerny CJ. Cell cycle regulated transcription: from yeast to cancer. F1000Res. 2016; 12:1-5. doi:10.12688/f1000research.8111.1. [ Links ]

2. Forsburg SL. Eukaryotic MCM proteins: beyond replication initiation. Microbiol Mol Biol Rev. 2004; 68 (1): 109-31. [ Links ]

3. Simon NE, Schwacha A. The Mcm2-7 replicative helicase: a promising chemotherapeutic target. Biomed Res Int. 2014; 2014: 549719. doi: 10.1155/2014/549719. [ Links ]

4. Nguyen V Q, Co C, Irie K, LiJ J. Clb/Cdc28 kinases promote nuclear export of the replication initiator proteins Mcm2-7. Curr. Biol. 2000; 10 (4): 195-205. [ Links ]

5. Braun KA, Breeden LL. Nascent transcription of MCM2-7 is important for nuclear localization of the minichromosome maintenance complex in G1. Mol Biol Cell. 2007; 18 (4): 1447-56. [ Links ]

6. Arias EE, Walter JC. Strength in numbers: prevent ingress replication via multiple mechanisms in eukaryotic cells. Genes Dev. 2007; 21 (5): 497-518. [ Links ]

7. Alver RC, Chadha GS, Blow JJ. The contribution of dormant origins to genome stability: from cell biology to human genetics. DNA Repair (Amst). 2014; 19: 182-9. [ Links ]

8. Laskey R. The Croonian Lecture 2001 hunting the antisocial cancer cell: MCM proteins and their exploitation. Philos Trans R Soc Lond B Biol Sci. 2005; 360 (1458): 1119-32. [ Links ]

9. Simon NE, Schwacha A. The Mcm2-7 replicative helicase: a promising chemotherapeutic target. Biomed Res Int. 2014; 2014: 549719. doi: 10.1155/2014/549719. [ Links ]

10. Zegerman P, Diffley JF. Phosphorylation of Sld2 and Sld3 by cyclin-dependent kinases promotes DNA replication in budding yeast. Nature. 2007; 445 (7125): 281-5. [ Links ]

11. Tanaka S, Umemori T, Hirai K, Muramatsu S, Kamimura Y, Araki H. CDK-dependent phosphorylation of Sld2 and Sld3 initiates DNA replication in budding yeast. Nature. 2007; 445 (7125): 328-32. [ Links ]

12. Xu M, Chang YP, Chen XS. Expression, purification and biochemical characterization of Schizosaccharomycespombe Mcm4, 6 and 7. BMC Biochem.2013; 14:5. [ Links ]

13. Cortez D, Glick G, Elledge SJ. Minichromosome maintenance proteins are direct targets of the ATM and ATR checkpoint kinases. Proc Nat lAcad Sci U S A. 2004; 101 (27): 10078-83. [ Links ]

14. Blow JJ, Ge XQ, Jackson DA. How dormant origins promote complete genome replication. Trends Biochem Sci. 2011; 36 (8): 405-14. [ Links ]

15. Tan Z, Wortman M, Dillehay KL, Seibel WL, Evelyn CR, Smith SJ, Malkas LH, Zheng Y, Lu S, Dong Z. Small-molecule targeting of proliferating cell nuclear antigen chromatin association inhibits tumor cell growth. Mol Pharmacol. 2012; 81 (6): 811-9 [ Links ]

16. Bochman ML, Schwacha A. Differences in the single-stranded DNA binding activities of MCM2-7 and MCM467: MCM2 and MCM5 define a slow ATP-dependent step. J Biol Chem. 2007; 282 (46): 33795-804 [ Links ]

17. Bochman ML, Bell SP, Schwacha A. Subunitorganizationof Mcm2-7 and the unequal role of active sites in ATP hydrolysis and viability. Mol Cell Biol. 2008; 28 (19): 5865-73. [ Links ]

18. Ilves I, Petojevic T, Pesavento JJ, Botchan MR. Activation of the MCM2-7 helicase by association with Cdc45 and GINS proteins. Mol Cell. 2010; 37 (2): 247-58. [ Links ]

19- Madine MA, Swietlik M, Pelizon C, Romanowski P, Mills AD, Laskey RA. The roles of the MCM, ORC, and Cdc6 proteins in determining the replication competence of chromatin in quiescent cells. J Struct Biol. 2000; 129 (2-3): 198-210. [ Links ]

20. Das M, Prasad SB, Yadav SS, Govardhan HB, Pandey LK, Singh S, Pradhan S, Narayan G. Over expression of minichromosome maintenance genes is clinically correlated to cervical carcinogenesis. PLoS One. 2013; 8 (7): e69607. [ Links ]

21. Giaginis C, Vgenopoulou S, Vielh P, Theocharis S. MCM proteins as diagnostic and prognostic tumor markers in the clinical setting. Histol Histopathol. 2010; 25 (3): 351-70. [ Links ]

22. Simon NE, Schwacha A. The Mcm2-7 replicative helicase: a promising chemotherapeutic target. Biomed Res Int. 2014; 2014: 549719. doi: 10.1155/2014/549719. [ Links ]

23. Korkolopoulou P, Givalos N, Saetta A, Goudopoulou A, Gakiopoulou H, Thymara I, Thomas-Tsagli E, Patsouris E. Minichromosome maintenance proteins 2 and 5 expression in muscle-invasive urothelial cancer: a multivariate survival study including proliferation markers and cell cycle regulators. Hum Pathol. 2005; 36 (8): 899-907 [ Links ]

24. Gakiopoulou H, Korkolopoulou P, Levidou G, Thymara I, Saetta A, Piperi C, Givalos N, Vassilopoulos I, Ventouri K, Tsenga A, Bamias A, Dimopoulos MA, Agapitos E, Patsouris E. Minichromosome maintenance proteins 2 and 5 in non-benign epithelial ovarian tumours: relationship with cell cycle regulators and prognostic implications. Br J Cancer. 2007; 97 (8): 1124-34. [ Links ]

25. Gouvêa AF, Vargas PA, Coletta RD, Jorge J, Lopes MA. Clinicopathological features and immune histochemical expression of p53, Ki-67, Mcm-2 and Mcm-5 in proliferative verrucous leukoplakia. J Oral Pathol Med. 2010; 39 (6): 447-52. [ Links ]

26. Wharton SB, Chan KK, Anderson JR, Stoeber K, Williams GH. Replicative Mcm2 protein as a novel proliferation marker in oligodendrogliomas and its relationship to Ki67 labelling index, histological grade and prognosis.Neuropathol Appl Neurobiol. 2001; (4): 305-13. [ Links ]

27. Rodins K, Cheale M, Coleman N, Fox SB. Minichromosome maintenance protein 2 expression in normal kidney and renal cell carcinomas: relationship to tumor dormancy and potential clinical utility. Clin Cancer Res. 2002; 8 (4): 1075-81. [ Links ]

28. González MA, Pinder SE, Callagy G, Vowler SL, Morris LS, Pájaro K, Campana JA, Laskey RA, Coleman N. Minichromosome maintenance protein 2 is a Strong independent prognostic marker in breast cancer. J Clin Oncol. 2003; 21 (23): 4306-13. [ Links ]

29. Lee YS, Ha SA, Kim HJ, Shin SM, Kim HK, Kim S, Kang CS, Lee KY, Hong OK, Lee SH, Kwon HS, Cha BY, Kim JW. Minichromosome maintenance protein 3 is a candidate proliferation marker in papillary thyroid carcinoma. Exp Mol Pathol. 2010; 88 (1): 138-42. [ Links ]

30. Kikuchi J, Kinoshita I, Shimizu Y, Kikuchi E, Takeda K, Aburatani H, Oizumi S, Konishi J, Kaga K, Matsuno Y, Birrer MJ, Nishimura M, Dosaka-Akita H. Minichromosome maintenance (MCM) protein 4 as a marker for proliferation and its clinical and clinico pathological significance in non-small cell lung cancer. Lung Cancer. 2011; 72 (2): 229-37. [ Links ]

31. Ladstein RG, Bachmann IM, Straume O, Akslen LA. Ki-67 expression is superior to mitotic count and novel proliferation markers PHH3, MCM4 and mitos in as a prognostic factor in thick cutaneous melanoma. BMC Cancer.2010; 10: 140. [ Links ]

32. Giaginis C, Giagini A, Tsourouflis G, Gatzidou E, Agapitos E, Kouraklis G, Theocharis S. MCM-2 and MCM-5 expression in gastric adenocarcinoma: clinical significance and comparison with Ki-67 proliferative marker. Dig Dis Sci. 2011; 56 (3): 777-85. [ Links ]

33. Liu H, Takeuchi S, Moroi Y, Lin N, Urabe K, Kokuba H, Imafuku S, Dainichi T, Uchi H, Furue M, Tu Y. Expression of mini chromosome maintenance 5 protein in proliferative and malignants kind diseases. Int J Dermatol. 2007; 46 (11): 1171-6. [ Links ]

34. Murphy N, Ring M, Heffron CC, Martin CM, McGuinness E, Sheils O, O'Leary JJ. Quantitation of CDC6 and MCM5 m RNA in cervical intraepithelial neoplasia and invasive squamous cell carcinoma of the cervix. Mod Pathol. 2005; 18 (6): 844-9. [ Links ]

35. Yu SY, Wang YP, Chang JY, Shen WR, Chen HM, Chiang CP. Increased expression. of MCM5 is significantly associated with aggressive progression and poor prognosis of oral squamous cell carcinoma. J Oral Pathol Med. 2014; 43 (5): 344-9. [ Links ]

36. Zheng T, Chen M, Han S, Zhang L, Bai Y, Fang X, Ding SZ, Yang Y. Plasma minichromosome maintenance complex componente is a novel biomarker for hepatocellular carcinoma patients. Hepatol Res. 2014; 44 (13): 1347-56. [ Links ]

37. Ren B, Yu G, Tseng GC, Cieply K, Gavel T, Nelson J, Michalopoulos G, Yu YP, Luo JH. MCM7 amplification and over expression are associated with prostate cancer progression. Oncogene. 2006; 25 (7): 1090-8. [ Links ]

38. Nishihara K, Shomori K, Fujioka S, Tokuyasu N, Inaba A, Osaki M, Ogawa T, Ito H. Minichromosome maintenance protein 7 in colo rectal cancer: implication of prognostic significance. Int J Oncol. 2008; 33 (2): 245-51. [ Links ]

39. Fujioka S, Shomori K, Nishihara K, Yamaga K, Nosaka K, Araki K, Haruki T, Taniguchi Y, Nakamura H, Ito H. Expression of minichromosome maintenance 7 (MCM7) in small lung adenocarcinomas (pT1): Prognostic implication. Lung Cancer. 2009; 65 (2): 223-9. [ Links ]

40. Williams GH, Romanowski P, Morris L, Madine M, Mills AD, Stoeber K, Marr J, Laskey RA, Coleman N. Improved cervical smear assessment using antibodies against proteins that regulate DNA replication. Proc Natl Acad Sci U S A. 1998; 95 (25): 14932-7. [ Links ]

41. Stoeber K, Swinn R, Prevost AT, de Clive-Lowe P, Halsall I, Dilworth SM, Marr J, Turner WH, Bullock N, Doble A, Hales CN, Williams GH. Diagnóstico de genito-urinario tracto cáncer mediante la detección de minicromos o mantenimiento 5 de proteínas enorina sedimentos. J Natl Cancer Inst. 2002; 94 (14): 1071-9. [ Links ]

42. Stoeber K, Tlsty TD, Happerfield L, Thomas GA, Romanov S, Bobrow L, Williams ED, Williams GH. DNA replication licensing and human cell proliferation. J Cell Sci. 2001; 114 (Pt 11): 2027-41. [ Links ]

43. Hanna-Morris A, Badvie S, Cohen P, McCullough T, Andreyev HJ, Allen-Mersh TG. Minichromosome maintenance protein 2 (MCM2) is a stronger discriminator of increased proliferation in mucosa adjacent to colorectal cancer than Ki-67. J Clin Pathol. 2009; 62 (4): 325-30 [ Links ]

44. Scholzen T, Gerdes J. The Ki-67 protein: from the known and the unknown. J Cell Physiol. 2000; 182: 311-22. [ Links ]

45. Kodani I, Osaki M, Shomori K, Araki K, Goto E, Ryoke K, Ito H. Minichromosome maintenance 2 expression is correlated with mode of invasion and prognosis in oral squamouscell carcinomas. J Oral PatholMed. 2003: 32 (8): 468-74. [ Links ]
