Conducting Empirical Studies to Evaluate a Technique to Inspect Software Testing Artifacts



Jardelane Brito, Arilo Claudio Dias-Neto



Federal University of Amazonas (UFAM), Institute of Computing (IComp)

Manaus, Amazonas, Brazil, CEP 69077-000



{jardelane.brito, arilo}@icomp.ufam.edu.br



Abstract



Experimentation is becoming increasingly used in the Software Engineering field. Several methodologies adopt empirical studies as an instrument to support the software technologies’ conception and maturation. This paper presents the application of a methodology based on the conduction of primary studies to develop a new checklist-based technique, named TestCheck, for inspection of software testing artifacts (test plan, cases, and procedures). Thus far, three empirical studies have been conducted (two feasibility studies and one observational study). The results of the first feasibility study indicate that TestCheck is more efficient and effective when detecting defects in software testing artifacts than an Ad-hoc approach. The results of the second feasibility study suggest an improvement in TestCheck regarding the defects detection and the reduction of the number of false positives per inspector. Finally, the results of the third study (observational study) evaluated positively the application of TestCheck by software engineers inspecting testing artifacts developed in an industrial environment. Thus, it would be qualified for the execution of the methodology’s next steps (case studies in the software industry).



Portuguese abstract



Experimentação tem se tornado cada vez mais usada na área de Engenharia de Software. Várias metodologias adotam estudos experimentais como um instrumento de apoio à concepção e amadurecimento de tecnologias de software. Este artigo apresenta a aplicação de uma metodologia baseada na condução de estudos primários para desenvolvimento de uma nova técnica baseada em checklist, chamada TestCheck, para inspeção de artefatos de teste de software (plano, casos e procedimentos de teste). Até o momento, três estudos experimentais foram conduzidos (dois estudos de viabilidade e um estudo de observação). Os resultados do primeiro estudo de viabilidade indicam que TestCheck é mais eficiente e efetiva quando detectando defeitos em artefatos de teste de software que uma abordagem Ad-hoc. Os resultados do segundo estudo de viabilidade sugerem uma melhoria em TestCheck em relação à detecção de defeitos e a a redução do número de falso positivos por inspetor. Finalmente, os resultados do terceiro estudo (estudo de observação) avaliaram positivamente a aplicação de TestCheck por engenheiros de software inspecionando artefatos de teste desenvolvidos em um ambiente industrial. Assim, a técnica estaria qualificada para a execução dos próximos passos da metodologia (estudos de caso na indústria de software).



Keywords: Software Inspection, Software Testing, Checklist, Software Quality.

Portuguese keywords: inspección de software, ensayos de software, calidad de software .

Received 2012-07-09, Revised 2012-12-13, Accepted 2012-12-13





1             Introduction



The application of experimentation concepts in the area of software engineering (known as Empirical Software Engineering – ESE) goes back to the 70s and 80s (1) and has been growing significantly every year (2). As a consequence of this development, the technical literature has provided research methodologies (3)(4), ontologies and knowledge repositories (5)(6), and environments to support experimental studies (7)(8) among others. Thus, more and more experimentation has been used for the conception and evaluation of new software technologies.

In this context, this paper describes the application of concepts published in the ESE area for the experimental evaluation of a new checklist-based inspection technique for reviewing artifacts produced during the software testing process, called TestCheck. Despite the advances in Software Engineering regarding the utilization of methods and techniques to obtain quality systems, a piece of software still needs to be tested before it can be delivered to a client. Thus, software testing presents itself as one of the most effective means to ensure the quality of software, and it is also one of the most complex areas in software engineering, as well as one of the most studied (9)(10).

In order to achieve the goals outlined by the software testing activities, it is necessary to follow a process that manages the tasks from their planning through to the analysis of their results. The testing activities, if carried out without an objective, planning or adequate techniques, can present unpleasant consequences to a software project, since the discovery of defects at an advanced stage, among other things, increases correction costs, leads to delays in the schedule and provokes customer dissatisfaction. However, merely following a process does not guarantee its quality. The quality of the tests is directly related to the possibility of revealing failures in the system. If the artifacts produced during the tests (e.g. test plan, cases, and procedures) present defects, it is unlikely that the objective of providing quality tests will be achieved and the final result of the tests will not be satisfactory (11).

Thus, applying quality assurance techniques to the artifacts that are produced in the testing process may be a viable solution to guarantee the quality of tests in software projects. In this context, software inspection (12) is a quality assurance technique that has been established to detect defects at an early stage in the system’s development, and it is applied to any software artifact. In (13), the authors present an approach based on a checklist for the inspection of test artifacts, called TestCheck. Its objective is to minimize and prevent defects occurring in the artifacts that are produced in the testing process. This paper presents the procedures followed for the experimental evaluation of TestCheck and their results. The studies we carried out were based on the study packages for the evaluation of checklist-based inspection techniques published in (14) and (15).

The application of ESE concepts generally occurs in different Software Engineering subareas, but it has a special scenario in the Software Inspection subarea, where we can see a large volume of evidence coming from experimental studies, as can be seen in a systematic literature review published in 2005 (16). This scenario results in study packages that can be replicated by other researchers in order to provide an experimental evaluation of inspection techniques. For the evaluation of TestCheck we will apply a scientific methodology based on different experimental studies (3). According to the methodology, the first study to be carried out for the evaluation of a new technology is a feasibility study, which should be repeated until the feasibility of the new proposed technique in relation to its goal is known. Then, an observation study should be carried out in order to evaluate the behavior of software engineers when they use the new technique. Continuing the methodology, case studies in a real lifecycle in the industry need to be carried out to evaluate the proposed technology from its definition right through to its transfer to the industrial environment. Thus far, in our research, the first two stages of this methodology have been completed in three experimental studies (two feasibility studies and one observation study). This paper describes the evolution process of the TestCheck technique guided by the results obtained in these studies.

This paper is an extended version of the paper published in (17), where new details, including a new version, regarding the proposed approach to inspect testing artifacts and results from the first two evaluation (feasibility) studies are described. Moreover, a third (observational) study performed with practitioners is described. The results indicate efficiency and effectiveness of the proposed techniques to detect defects in testing artifacts in controlled and industrial environments.

Besides this Introduction, this comprises more 5 sections. In Section 2 we present the checklist-based technique to support the inspection of software testing artifacts (TestCheck), which is the main instrument of evaluation in the studies carried out and described in this paper. In Section 3 we present the planning, design, and results of the first experimental study carried out, with the objective of evaluating the feasibility of TestCheck when compared to an Ad-hoc technique. In Section 4 we present the second feasibility study, with the objective of evaluating the evolution of TestCheck in continuation from the first study, analyzing whether it satisfies the necessary criteria for the next step in the methodology (evaluation in industry). In Section 5 we present the third (observational) study, which evaluated TestCheck’s behavior in an industrial environment of software developent. Finally, in Section 6, we present the conclusions, limitations and next steps to be taken to follow through this research.



2             TestCheck – Checklist-Based Technique to Support the Inspection of Software Testing Artifacts



The TestCheck approach has been developed with the aim of complying with the technical features required in an inspection approach, as described in (18). Acting on these features, the following tasks were carried out, as detailed in the subsections that follow:

·          Definition of the technique used to detect the defects in the inspected artifacts;

          Determination of the software artifact that needs to be evaluated by the approach;

·          Specification of the evaluation items that need to comprise the proposed approach.



2.1        Defect Detection Technique to be adopted



Within the 3 categories of defect detection techniques that can be applied in an inspection approach (Ad-hoc, checklist-based, or reading technique) it is not possible to instantiate the use of an Ad-hoc technique, as such a technique does not use any support tools and depends exclusively on the experience and previous knowledge of the inspector, without providing any additional support. When analyzing the feasibility of creating a reading technique, we perceived that this requires the document to be inspected to follow a standard format to guide the reading process, and this scenario cannot as yet be attained in the Software Testing area, as there is no standardization for representing test artifacts. Despite the existence of the IEEE-Std 829 standard (19) as a guideline for the documentation of test artifacts, in practice it is little used, as can be seen in (20). Furthermore, this standard only describes templates that can (must) still be customized in the process of applying them to software projects.

Finally, analyzing the technique based on checklist, we can see that it is an evolution from the Ad-hoc technique and, as opposed to the reading techniques, it does not require a standardization of the artifacts’ representation. When reviewing software documents using a checklist, the inspector is supplied with a set of questions that help him identify defects by indicating in which part of the artifact to be evaluated he needs to look for them. Therefore, due to the features of the Software Testing area, the defects detection technique based on checklists has features that make it feasible to be applied in an inspection of test artifacts. It was this technique, therefore, that we selected to detect defects in this study.



2.2        Software Testing Artifacts to be inspected



To develop TestCheck, we selected the artifacts that would be evaluated by the proposed technique. We looked for testing artifact templates that would be candidates to be reviewed in different sources, such as software development methodologies/frameworks, including predictive (process-based, like RUP – Rational Unified Process) and adaptive (agile) methods. In this analysis, we observed that the templates suggested by these methods are originated from the same source: IEEE-Std 829 (19). In general, these methods suggest test documentation templates that consist of a sub-set of templates proposed by IEEE-Std 829. This standard proposes a set of eight templates that can be applied to different development methodologies, such as predictive and adaptive methods. It was published initially in 1983, and reviewed in 1998 and 2008. The current version (published in 2008 (19)) describes templates for eight different testing artifacts: Master Test Plan (MTP), Level Test Plan (LTP),  Level Test Design (LTD),  Level Test Case (LTC), Level Test Procedure (LTPr), Level Test Log (LTL), Anomaly Report (AR), Level Interim Test Status Report (LITSR), Level Test Report (LTR), and Master Test Report (MTR).

           The selection of which testing artifacts would be reviewed by the proposed technique was based, initially, on the test planning stage. We decided to evaluate, in the first moment, only artifacts produced in this stage as an attempt to minimize and prevent the incidence of defects during the testing execution stage, which could make the tests’ execution in a software project unfeasible. Thus, this decision limited the choice to the artifacts MPT, LTP, LTD, LTC, and LTPr.

           In a second decision, we decided to select testing artifacts included in the versions of IEEE-Std 829 published in 1998 and 2008, because the old version is still applied intensely in software projects (20). Therefore, templates included in only one of these versions were not selected. This decision limited the choice to the artifacts LTP, LTD, LTC, and LTPr.

           Finally, in the third decision, we decided to review the testing artifacts most used in the software industry. In (20) the authors presented the results of a survey conducted with practitioners regarding the preferable IEEE-Std 829 test documentation in an international perspective. The authors reported that the following three testing artifacts are the most applied in real software projects in the testing planning phase: test plan (LTP), test cases (LTC), and test procedures (LTPr). Therefore, they were selected to be reviewed by the proposed technique. The remaining testing artifacts can be considered in the evolution of this research.  A very brief description of the selected artifacts is as follows:

·         Level Test Plan presents the planning to execute tests, including its scope, goals, tasks allocation, resources distribution, schedule, and risks associated to testing (19).

·         Level Test Case defines inputs (test data), expected results/behaviors, actions and conditions to execute the test case (19).

·         Level Test Procedure specifies the steps to execute a set of test cases, their pre-conditions and special requirements to be executed (19).



The selected artifacts can be applied to tests at different levels (e.g. unit, integration, system and acceptance). Thus, the checklists that compose the TestCheck approach were elaborated in such a way as to apply them to these different levels, consisting of items that inquire into the artifacts’ structure and content without being directed toward a specific level.

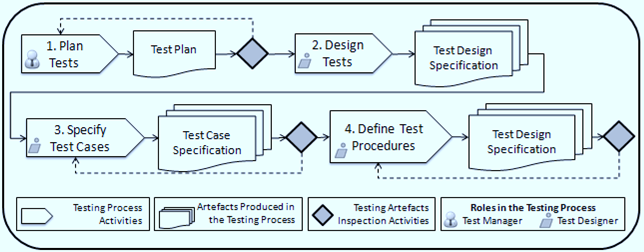

Figure 1 graphically represents an evolution of the sub-process of test planning described in (21) It indicates the artifacts to be inspected and at what moment (represented by a diamond) of the testing process this occurs.

Figure 1: Evolution of the Test Planning Sub-process including Inspection Activities

Three checklists were developed, one for each selected testing artifact: Test Plan, Test Case, and Test Procedure.



·     Checklist to Inspect Testing Plans



Starting with the testing plan, this artifact needs to contain all the information that is relevant to the planning of testing activities, as any defects existing in this document can undermine the final result of the tests. The checklist developed to check this artifact has 13 items (listed below) to be evaluated by 38 questions (see Table 1).

Table 1: Evaluation Items Comprising the Checklist for Inspection of Test Plans

Due to the limited space, we cannot present the full checklist proposed to inspect test plans. An extract of this checklist is shown in Figure 2.

Figure 2:Partial Extract of the Checklist to Evaluate the Test Plan

·     Checklist to Inspect Test Cases



The checklist to inspect specification of test cases evaluates 6 items (listed below) that comprise this artifact, detailed in 19 questions, as shown in Table 2.

Table 2: Evaluation Items Comprising the Checklist for Inspection of Test Cases

Again, due to the limited space, we will not also present the full checklist proposed to inspect test cases. An extract of this checklist is shown in Figure 3.

Figure 3: Extract of checklist to support inspection of test cases

·     Checklist to Inspect Test Procedures



The checklist for inspecting the specification of test procedures evaluates 4 items (listed below), detailed in 16 questions, as shown in Table 3.

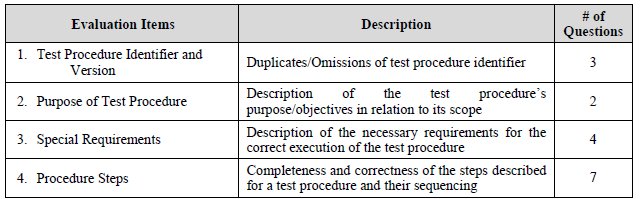

Table 3: Evaluation Items Comprising the Checklist for Inspection of Test Procedures

As it is smaller than the other two, in Figure 4 we present the full checklist proposed to inspect specifications of test procedures, including all evaluation items and questions.

Figure 4: Extract of checklist to support inspection of test procedures (13)

Currently, TestCheck is in its third version. The complete version of the checklists can be found at http://www.icomp.ufam.edu.br/experts/testcheck-en.zip. More details about TestCheck’s conception process, the content of its checklist and previous versions can be obtained in (13).

            Having concluded the technique’s conception phase, in the next section we will present the first experimental study carried out to evaluate the proposed technique.



3             Feasibility Study 1



According to the scientific method for evaluation of software technologies based on experimental studies defined in (3), the first experimental study that has to be carried out to evaluate a new technology is a feasibility study, which aims to assess whether the new technology is in fact feasible and whether the time spent using it is well employed.

The feasibility of the technique was assessed in relation to its effectiveness (number of defects in relation to the total number of discrepancies encountered) and efficiency (number of defects identified per unit of time) in identifying defects.



3.1        Planning and Execution of the Feasibility Study



The premise for an inspection approach is that it should guide inspectors in the detection of defects in artifacts in a reduced space of time and generate a low number of false positives (discrepancies reported as defect by the inspector, but that are not a real defect). To evaluate this premise, we carried out a comparison between the defects detected by the proposed approach (TestCheck) and the results obtained by an Ad-hoc approach, as we did not find any other approach in the technical literature based on a checklist or reading technique with a similar objective to TestCheck. In addition to evaluating this premise, this first study also aims to provide a baseline for the TestCheck approach, allowing for future comparisons in the course of its evolution. Comparing it initially with the Ad-hoc approach contributes to this objective. Thus, we defined the Null Hypothesis (and the alternatives ones) for this study, as described below:



           This first study was carried out in the Amazonas state in Brazil and 12 undergraduate and graduate students of a class about software quality at the Federal University of Amazonas (UFAM) took part in it. In order to assess each student’s knowledge and experience, they were asked to answer a Profile Questionnaire, which evidenced the participants’ low level of technical knowledge regarding the application of inspection techniques in the industry, as most of their previous experience had been only in an academic environment. Each participant carried out the inspection off-line and did not know who else participated in the study in order to avoid the exchange of information between participants.

In the study design, the participants were divided into 2 groups (A and B) based on the information in their profile questionnaires so as to mix participants with different levels of experience. Test artifacts of two distinct projects (called Industrial and Academic) were used during the experiment. The test artifacts of the Industrial project originated from a real project being developed in industry for managing users, their profiles and functionalities in a web system for the management of research projects. The test artifacts of the Academic project originated from an assignment given in a subject about software testing taught in 2010, in which students (not participants of the study) designed tests for a library’s control system. At no time did the researchers insert defects into these artifacts. It was the versions created by their authors that were evaluated. The participants carried out the study in 3 different phases, as described in Table 4.

Table 4: Procedure followed in the study

            In phase 1 everybody applied an Ad-hoc technique. At this point each student received documents pertaining to one of the projects, according to which group they belonged to, containing 1 test plan, 5 test cases, 5 test procedures, 1 list of discrepancies to be filled out by the participants during the inspection, and 1 requirements specification document for any clarification about the test artifacts. The requirements specification document was not inspected.

After phase 1, the students received training on how to employ the second technique, TestCheck. In this phase, they were given an explanation of the items that comprise the checklists and of the new template of the list of discrepancies to be filled out. After the training, phase 3 was started where artifacts of a new software project were distributed to the students, inverting the artifacts distributed between the groups in phase 1.

After the conclusion of phase 3, the data obtained were organized. The individual lists of discrepancies were integrated into one single list. Then, each discrepancy was evaluated and classified either as a defect or a false positive. This analysis was performed by the researcher involved and a specialist in software testing. In the case of doubt, a third researcher was consulted.



3.2        Results of the Feasibility Study 1



In order to assess the feasibility of the proposed inspection technique, we analyzed the variables: defects detected, occurrence of false positives, and the time each inspector needed for the inspection, as shown in Table 5. Two other variables were also analyzed, derived from the data obtained from the simple variables cited. They are:

·   Effectiveness: the percentage of defects detected in relation to the total of reported discrepancies.

·   Efficiency: number of defects detected per minute.

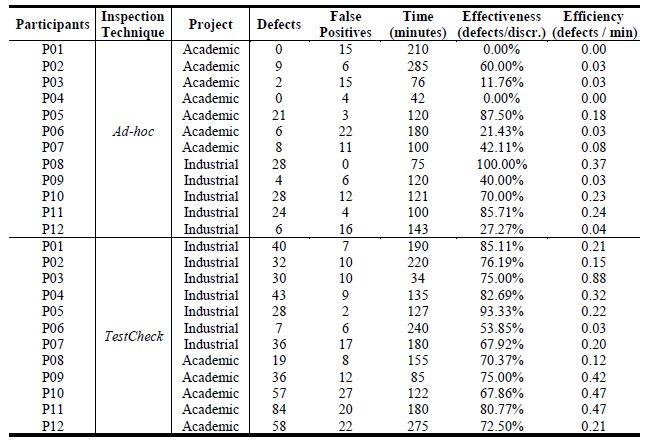

Table 5: Summary of the data obtained in the feasibility study 1

After that, the averages for the collected variables were analyzed, as shown in Table 6.

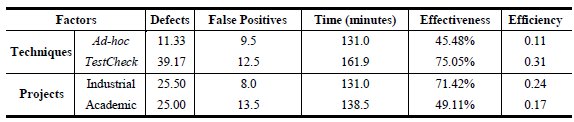

Table 6: Average of the defects, time, effectiveness and efficiency.

Starting with the analysis of the total number of defects detected, we see that the TestCheck technique found, on average per participant, more defects than the Ad-hoc technique (39.17 x 11.33 defects), while the analysis of the total number of defects per software project showed, on average, a similar results (25.0 x 25.5 defects). However, we notice that TestCheck takes, on average, more time to carry out the inspection than the Ad-hoc technique (161.9 x 131.0 minutes). This result was expected, as TestCheck provides additional instruments for the detection of defects during an inspection (checklists). Analyzing the time spent per software project, we see that, on average, the results of the two are similar (131.0 x 138.5 minutes).

Another variable considered during the analysis was the number of false positives each technique generated, which in this first study did not show such a positive result for the TestCheck technique, having generated on average 12.5 false positives per inspector, whereas the Ad-hoc technique generated 9.5. This result suggested a possible point for the technique’s evolution in a new version. Analyzing the results per software project, one also notices a discrepancy between the two, with one of the projects (Academic) obtaining an average of 8.0 false positives, against 13.5 of the other project (Industrial), suggesting that the software project used in the study could be a factor that influences the amount of false positives generated during an inspection.

In regard to the variables’ effectiveness and efficiency, the TestCheck technique obtained positive results for both when compared to the Ad-hoc technique. The average in relation to effectiveness was 75% for TestCheck, against 45% for the Ad-hoc technique. The average regarding efficiency was 0.31 defects/minute for TestCheck, against 0.11 defects/minute for the Ad-hoc technique. Analyzing the results of the two variables per software project, we can see that the average of one project is disproportional to the other in regard to the variable effectiveness (71% x 49%), but fairly similar for the variable efficiency (0.24 x 0.17 defects/minute).

However, despite this preliminary result, it was necessary to apply some statistical tests to the obtained data in order to evaluate the existence of any statistically significant differences between them. For this, we first carried out an outlier analysis to check if there are any points substantially diverging from the values obtained. The results show that there were no outliers between participants. After that an Analysis of Variance (ANOVA) was applied with a level of accuracy of 95% (error rate α = 0.05). All the variables listed in Table 6 were analyzed considering the two factors evaluated in this study: the inspection technique applied (Ad-hoc or TestCheck) and the software project inspected (Industrial and Academic). The results obtained are described in Table 7.

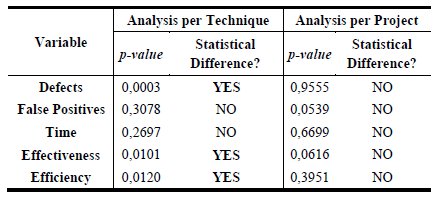

Table 7: Summary of the Analysis of Variance (ANOVA) applied to Feasibility Study

Analyzing the technique that was applied, we can observe that there is a statistical difference (since the p-value obtained is inferior to the error rate adopted in the study, α = 0.05) between the TestCheck and Ad-hoc techniques for the variables Number of defects, Effectiveness and Efficiency, and the TestCheck technique always would be the factor influencing positively on the result. This indicates that TestCheck detects a higher number of defects in the course of test artifacts inspections in absolute value, as well as a higher number of defects in relation to the total number of discrepancies reported by the inspectors (effectiveness), and also in relation to the number of defects detected per unit of time spent on the inspection (efficiency).

Analyzing the variables False positives and Time, the data indicates that there would be no statistical difference between the techniques. This result was considered to be positive in regard to evaluating the feasibility of the TestCheck technique, as this technique introduces new elements (checklists) which could turn into factors that make the inspection of the software testing artifacts more difficult. However, this did not happen with these variables.

Evaluating the results obtained for each software project, one notices that the projects used in the study did not influence the results. All the p-values for all the variables (Table 7) were above the error rate (α = 0.05) defined in the study, thus indicating that there would be no statistical difference between the projects employed.

Therefore, the null hypothesis was rejected, as the results indicated that TestCheck makes a positive contribution to the detection of defects when compared to an Ad-hoc approach.


3.3        Evolution of the Checklists



Despite the good performance of TestCheck in this first evaluation study, we know that this technique is still in a phase of development, and so it is important to pay attention to points that can be improved upon. One of the points to be improved was the number of false positives generated when applying TestCheck, which amounted to 12.5 per participant and were thought to be high by the researchers, considering that the rate of defects detected by the technique was 39.16 per participant. Thus, for every 3 defects, approximately, 1 false positive would be generated by TestCheck. The objective for evolution, therefore, is to reduce the rate of false-positives encountered in the first study and maintain the high rate of defects encountered when using TestCheck as compared to the Ad-hoc technique.

For this reason, as a more detailed analysis of TestCheck’s performance, an individual analysis was carried out for each question that comprises the checklists that constitute the technique. The objective was to identify questions that can be developed and improved on for having had a low performance during the study. For this analysis we investigated the relation between the number of false positives that the question generated and the number of defects it detected. All the questions of the three checklists that constitute TestCheck that had a defect rate per false positive below or equal to 3.0 (this being a value obtained in the general scenario, as cited previously) would be a potential candidate to be evolved for the next version of the technique. This analysis is described in Table 8, where the questions that did not attain this standard are highlighted in gray. The items that did not generate a single false positive were not included in the analysis and are not shown in this table so as to simplify the description.

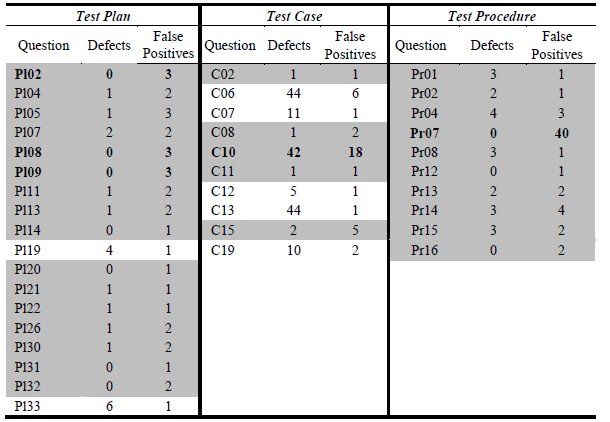

Table 8: Defects and false positives per TestCheck question (version 1.0)

A total of 31 questions (out of the 75 questions that constituted the 3 checklists in version 1.0) were selected as candidates for evolution. They were revised and rewritten (not necessarily all of them) to create a new version of TestCheck. Some questions required more attention, as is the case with questions Pl02, Pl08 and Pl09 of the test plan, C10 in the test case, and Pr07 in the test procedure (all boldfaced in Table 8), which had a high rate of false positives. Several factors may have had an influence on this result, one of them being the question’s wording, which could have led inspectors to different interpretations.



3.4        Threats to the Validity



The threats to the viability of this study will be described here according to their type:

·     Conclusion Validity: classification of each discrepancy as a defect by the experimentalists and heterogeneity of the participants, who were undergraduate and graduate students of Software Engineering.

·     Internal Validity: the sample of participants was not random, as it depended on the availability of students attending a class conducted by the researchers, and there may have been plagiarism, which would be the potential exchange of information between the participants about the study’s tasks.

·     Construction Validity: mono-operation bias, which would be the uncertainty of whether the study’s results were arrived at due to the application of the TestCheck or rather because of the “ease” of detecting defects in the document used in the selected projects, as well as the probability of participants “touching up” their data due to personal expectations about the evaluation of their results.

·     External Validity: interaction between selection and treatment, as academic students may not be a substitute for inspectors coming from the industry; interaction between environment and treatment, since the academic environment may not be able to entirely simulate the conditions of an industrial environment.



This process of evolution generated a new TestCheck version. Having concluded this phase of the technique’s evolution, we will now present the second study we carried out and its results.



4             Feasibility Study 2



In order to evaluate the evolution of TestCheck it is necessary to assess the results obtained in a second feasibility study to analyze if the implemented changes lead to improvements in the proposed technique. The second study followed the same framework as the first one, in which the objective was to evaluate the application of TestCheck compared to an Ad-hoc technique, and it was made up of two inspection rounds using the Ad-hoc and TestCheck techniques and it was carried out in December 2011 in an academic environment.

4.1       Planning and Execution of Feasibility Study 2



Initially, 19 undergraduate students of a software engineering class at the Federal University of Amazonas (UFAM) participated in the study; however, only 10 students concluded it. As in the first study, each student’s knowledge and experience was evaluated by means of a profile questionnaire, and the inspection was again carried out off-line to avoid the exchange of information between participants.

In the study design, the participants were once more divided into two groups (A and B) based on their questionnaires, thus mixing participants with different levels of experience. The same software projects (Industrial and Academic) and their test artifacts were used during the experiment (1 test plan, 5 test cases, 5 test procedures, 1 requirements specification document for any clarification about the test artifacts). The same procedure was followed for carrying out the study and consolidating the final list of discrepancies, as shown in Table 4. After carrying out the study, the analysis of the data was initiated.



4.2       Result of Feasibility Study 2



To evaluate the TestCheck technique, we collected the data for the same variables as in study 1, which we described in Section 3. Table 9 shows a summary of the data obtained for each participant.

      Working with this data, we analyzed the averages obtained for each variable, analyzing the defect detection techniques evaluated and the software projects used. After that, the statistical method ANOVA was applied to the data. As the main focus of this second study was to evaluate the evolution of TestCheck in relation to the number of false positives encountered by each inspector and ascertain the maintenance of the high defect detection rate, and also due to the limited space, the results obtained in the statistical tests of the variables will not be shown in this article. They can, however, be calculated from the data presented in Table 9.

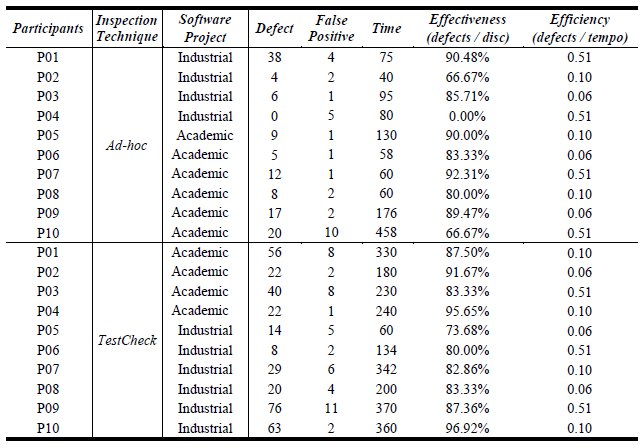

Table 9: Summary of the data obtained in feasibility study 2.

Analyzing the evolution of TestCheck, Table 10 presents a comparison between the inspection techniques focusing on the number of defects detected and the false positives generated per participant. The rate of false positives generated was 4.9 per inspector, a better result as the one obtained in the previous study, in which the rate was 12.5. This means that, when looking only at the average obtained, the objective for TestCheck’s evolution was achieved without undermining the second objective of the study, which was to maintain TestCheck’s high rate of defect detection when compared to the Ad-hoc technique. On average, for every 7 defects, 1 false-positive is generated by the TestCheck technique, whereas in the previous study the ratio was 3:1.

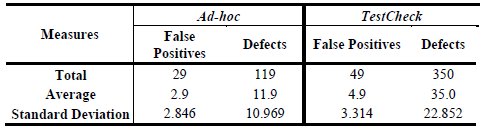

Table 10: Comparative Results of the Techniques regarding false positives.

Analyzing the data (number of defects and false positives) obtained for each question that comprise the 3 checklists that make up TestCheck, we notice a better distribution of the false positives, no longer concentrated in a reduced number of questions, as observed in the first study ( Table 11). However, nine questions, highlighted in Table 11, that generated 3 false positives or more will be investigated and possibly evolved in a new TestCheck version.

It is not possible to eliminate the presence of false positives, as this is an element which is part of the inspection process and depends on various factors that cannot necessarily be controlled. However, they can be optimized by reducing some of the factors that lead to the occurrence of false positives, mainly in relation to the wording of the questions that comprise the checklists, thus eliminating ambiguities that can lead to multiple interpretations of the questions presented.

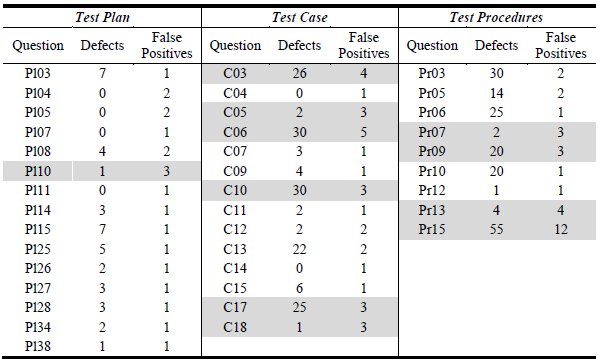

Table 11: Defects and false positives per TestCheck question (version 2.0).

The threats to the validity of this study are the same as those of the previous one, and for this reason they are not listed again in this section.

After analyzing the averages, we again carried out statistical tests on the data obtained to check for the existence of statistically significant differences between results. An Analysis of Variance (ANOVA) was applied, with a level of accuracy of 95% (error rate α = 0.05). The same variables analyzed in study 1 were again analyzed in this study, considering the two factors evaluated in the study: applied inspection technique applied (Ad-hoc or TestCheck) and inspected software project (Industrial and Academic). The results obtained are described in Table 12.

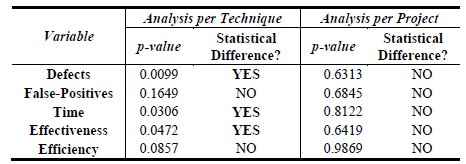

Table 12: Summary of the Analysis of Variance (ANOVA) applied to feasibility study 2.

Analyzing the techniques, we observed a statistical difference (p-value < 0.05 [α]) between TestCheck and Ad-hoc for the variables Defects, Time, and Effectiveness. For the variables Defects and Effectiveness the result was the same as observed in the first study, suggesting TestCheck detects more defects than Ad-Hoc. However, Time was a variable where TestCheck obtained a negative result. One possible reason was lower expertise level of the participants on software engineering when compared to the first study’s participants. We need to conduct new experiments to obtain more evidence regarding the impact of TestCheck with beginners on software engineering. The result of Time also impacted in the variable Efficiency, since TestCheck detected more defects, but required more time to be invested. For the last variable, False-positive, no statistical difference was found between the techniques.

Analyzing the software project, no statistical difference was found for any of the variables, suggesting the technique would be the factor that influences the results.



5             Observation Study in the Industry with Practitioners



5.1       Planning and Execution of the Observation Study



Proceeding within the methodology adopted in this study (3) the new technique is now to be applied in a second phase in order to analyze its evolution. Since the results obtained in the first two studies presented indications of TestCheck’s feasibility, this phase was conducted in a Brazilian research institute and aimed to assess whether the approach is adequate for use in a real-life environment. The items analyzed were its capacity to detect defects (quantitative evaluation) and the level of satisfaction of the inspectors from industry that applied the approach (qualitative evaluation). Table 13 presents information about the participants. In this study, one of the participants is the author of the documents inspected and he participated in the inspection section as a facilitator, evaluating the discrepancies and assessing their impact (severity) on the software project.

Table 13: Profile of the participants of the observation study.

This observation study proposes to respond to one question: Do the checklists proposed by TestCheck detect defects that would affect the quality of the execution of tests in a software project? To answer this question we analyzed the opinions of the participants of the inspection, evaluating whether the TestCheck approach allows the inspectors to identify defects in test artifacts (test plans, cases and procedures) within a reasonable amount of time, thus showing the effectiveness/efficiency of the checklists that comprise the approach.

As we were dealing with professionals from industry, with limited time on their hands, the inspection process was modified. The observation study in industry was conducted in only one session and all the participants carried out the inspection at the same time and in the same environment. In this session the candidates completed the Profile Questionnaire so as to identify their competency and experience with regard to the study’s objective, as well as to identify the participant’s knowledge of the problem domain to which the inspected artifact belongs. After the profiling, the participants were oriented to complete the Consent Form.

The test artifacts inspected (test plan, cases and procedures) consist of documents of a real project of that organization and they had already been evaluated by means of a self-devised (Ad-hoc) approach, however without keeping record of its performance (e.g. time and number of defects). After the first stage, the inspectors received training about the TestCheck approach and the procedures they should follow during this activity. They started the inspection by completing the list of discrepancies.

Having concluded the inspection, each participant was asked to complete the Post-Experiment Evaluation Questionnaire so as to obtain their qualitative evaluation of working with the TestCheck approach.

In possession of the Discrepancies Reports produced by each participant, a single meeting was held to classify the discrepancies either as defects or false positives. To qualify a discrepancy as a defect or a false positive we relied on the participants’ own judgment as well as that of specialists in software testing    (as happens in any traditional inspection process).

5.2       Quantitative Analysis



Considering that the evaluated testing artifacts had been previously inspected and approved by other professionals for tests execution, the number of defects detected using TestCheck was considered satisfactory by the software engineers that participated in the study ( Table 14). All reviewers detected a high number of new defects.

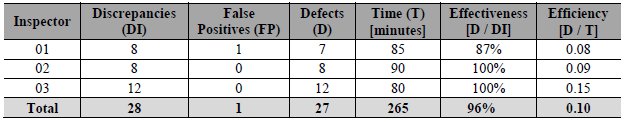

Table 14: Result of the observation study carried out in the industry.

Another aspect observed in Table 14 was the low number of false positives generated using TestCheck (only 1 false positive was generated). This result can be related to several factors, such as the evolution of the checklists after the two feasibility studies or the previous experience of the reviewers. Thus, new studies would be necessary to get more evidence regarding this observation.

TestCheck obtained, on average, 96% of effectiveness (defects per discrepancies) and efficiency of 0.10 defects per minute. Therefore, we assessed as positive the use of TestCheck in this study.



5.3       Qualitative Analysis



Analyzing just the total number of defects detected by TestCheck in these artifacts cannot represent how the technique contributed to the quality of testing in the software project. Thus, we investigated which defects were found and their estimated impact (severity) to the software project. The goal was to observe if they were related to important system features that would affect the testing quality, if not fixed.

The 27 reported defects were analyzed by the researchers and the artifacts’ author, who would be the professional responsible for the tests’ execution in this project. Removing duplicated defects 20 new defects were identified (Test Plan: 11 defects; Test Cases: 6 defects; Test Procedures: 3 defects). The author classified them according to their impact to the quality of testing activity in three possible levels (Figure 5):

·   High: it could make the tests’ execution unfeasible;

·   Medium: it would affect the testing, but the tester could observe and fix it before the execution.

·   Low: it would affect the testing management, but have minmum impact on test execution.



Describing the defects classified as “high impact”, they were related to:

·   Test Plan: absence of quality attribute to be tested and incorrect addition of features not developed in the current iteration (sprint) as test item.

·   Test Case: one incorrect expected result was described and the dependency among test cases was not defined.

·   Test Procedures: the execution order of test cases was not optimized, causing additional effort for the tests’ execution.

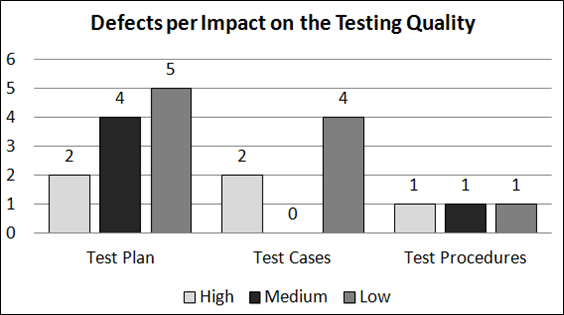

Figure 5: Classification of Defects per Impact on the Testing Quality.

5.4       Analysis of the Participants’ Satisfaction



Analyzing the results obtained and each inspector’s opinion ( Table 15), we can identify the potential of this approach being applied in an industrial context. Some modifications would be necessary, and based on the post-experiment evaluation questionnaire it is possible to improve the approach for future experiments.

Table 15: Evaluation reported by each inspector

Analyzing the answers to the questions we come to the following conclusion: With regard to detecting defects, all inspectors believe that the approach contributed positively, as it was possible to detect defects even after the document had already been reviewed. Another positive point highlighted by the inspectors is the fact that the approach allows to point defects in the artifacts, in addition to the evaluation of the quality of the test artifact. On account of these benefits, all inspectors believe that it is possible to use the approach in an industrial context, giving due consideration to some points of improvement described in Table 16.

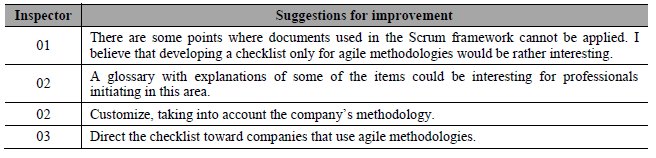

Table 16: Inspectors’ suggestions for improvement.

The improvement suggested by inspectors 01 and 03 refers to the creation of checklists directed toward companies that use agile methodologies. However, in this study we aimed to develop an approach that could be applied in different contexts, independently of the development methodology employed by an organization. That way, the TestCheck approach would be adaptable, bearing in mind that there is a wide range of items on the checklists, which allows firms to choose the items that fit the context of their company.

All suggestions were taken into account and analyzed, as the study focuses on the suitability of this approach for an industrial context. The suggestion of inspector 02 was considered to be very pertinent. Thus a glossary of terms will be included in a new version of TestCheck. Regarding customization, as suggested by Inspector 02, the checklists of the approach can be customized. However, this would have to be done manually, which would be costly in a project. One possible improvement would be to implement the TestCheck approach in a support tool in such a way as to allow for its customization, thus keeping to a minimum the work required for this task.



5.5       Threats to the Validity



Despite the identification of possible threats to the validity of the results, no conclusions were drawn beyond the limits imposed by these threats, and therefore they do not invalidate the study’s results.



•     Conclusion Validity:

o         Reliability of the Measures: The aim of this study was to identify the number of real defects and the type of defect the TestCheck approach identified with greater intensity. This being so, a potential threat to the validity of the study’s conclusion refers to the classification of each discrepancy as a defect by the experimentalists. However, this process is subjective, and it therefore represents a threat.

•     Internal Validity:

o         Participants: a potential problem is related to the sample of participants. However, as they are professionals in this field and work in industry, we can assume that they constitute a representative sample of inspectors, with participants having different levels of knowledge.

o         Competency: A possible threat to the validity is the necessary competency for carrying out the inspection. However, as they are professionals in this area with their skills and competency described in the profile questionnaire, this threat will be minimal.

•     Design Validity:

o         Mono-operation bias: the observation study in the industry will use real projects containing different artifacts: one single Test Plan, five Test Cases and five Test Procedures as object of inspection. Therefore, as they are artifacts developed in industry, it can be assumed that they are representative of the theory on which they are based, and therefore the result obtained will be due to the application of TestCheck, and not to the “ease” of detecting defects in the document used, remembering that those artifacts had already been previously inspected using an Ad-hoc technique adopted by the organization.



6             Conclusions



This article presented a sequence of studies and their results, the objective of which is to provide a sequential evaluation of the TestCheck technique (a technique to support inspection of software testing artifacts), envisaging its evolution and, consequently, transfer to the software industry.

The first experimental study carried out evaluated TestCheck’s efficiency and effectiveness by comparing it to an Ad-hoc technique. The results of this study were rather positive and indicate that TestCheck would be more efficient and effective in detecting defects than an Ad-hoc technique. However, an opportunity for improvement was identified for its further development: the rate of false positives encountered during inspections. Thus a new version of the technique was produced aiming to reduce the rate of false positives being generated.

Then a second experimental study was conducted with the objective of evaluating the modifications made in TestCheck and their impact on the rate of false positives encountered. The aim of the technique continued to be providing a higher rate of defect detection when compared to an Ad-hoc technique. The data obtained points to a positive result, with the rate of false positives per inspector having gone down from 12.5 to 4.9 when compared to the results obtained in the first study.

Finally, a third experimental study was conducted, with the objective of observing TestCheck’s application in the hands of practitioners (software engineers in the industry). The results indicate that TestCheck contributed positively to the detection of defects in test artifacts that had already been inspected previously with an Ad-hoc approach. The qualitative analysis carried out with the participants indicated their satisfaction in regard to working with the proposed approach.

The data obtained in both studies are not conclusive; they do however indicate that the approach has undergone an evolution and matured in the course of the studies. A further development will be the construction of a support tool for the application of TestCheck, allowing for the customization of the checklists that comprise it. The scientific methodology (proposed in (3)) for evaluating the approach will continue to be followed and TestCheck will proceed to the third phase, which is applying the method to a case study in an industrial environment. Thus new points for evolution will be identified and applied to the technique with the aim of eventually establishing it in an industrial environment.



Acknowledgments. The authors thank FAPEAM, FAPESP, CNPq (process 575696/2008-7) and INCT-SEC (processes 573963/2008-8 and 08/57870-9) for their kind support and assisting us in this research.



References

(1)         Basili, V.R., Selby, R.W., Hutchens, D.H.; “Experimentation in Software Engineering”, IEEE Transactions on Software Engineering, 12 (7), 1986, pp. 733-743.

(2)         Hannay, J. E., Hansen, O., By Kampenes, V., Karahasanovic, A., Liborg, N., and C. Rekdal, A; A Survey of Controlled Experiments in Software Engineering. IEEE Transaction on Software Engineering, 31, 9, 2005, pp. 733-753.

(3)         Shull, F., Carver, J., Travassos, G. (2001) “An Empirical Methodology for Introducing Software Processes”, In: Joint 8th ESEC and 9th ACM SIGSOFT FSE-9, pp. 288-296.

(4)         Dias Neto, A. C.; Spinola, R. ; Travassos, G. H. . Developing Software Technologies through Experimentation: Experiences from the Battlefield. In: XIII Congresso Iberoamericano en "Software Engineering" (CIBSE). Cuenca : Universidad del Azuay, 2010. v. I. p. 107-121.

(5)         Biolchini, J. ; Mian, P. ; Conte, T. U. ; Natali, A. C. C. ; Travassos, G. H.; Scientific research ontology to support systematic review in Software Engineering. Advanced Engineering Informatics, v. 21, p. 133-151, 2007.

(6)         Siy, H., & Wu, Y. (2009). An Ontology to Support Empirical Studies in Software Engineering. In: International Conference on Computing, Engineering and Information (ICC '09), April, 2009, pp. 12-15. doi:10.1109/ICCEIS.2009.72.

(7)         Lopes, V. P. ; Travassos, G. H. . Knowledge Repository Structure of an Experimental Software Engineering Environment. In: XXIII Brazilian Symposium on Software Engineering, Fortaleza, 2009. v. 1. p. 32-42.

(8)         Travassos, G.H.; Santos, P.S. M.; Mian, P.; Dias-Neto, A.C.; Biolchini, J.; An Environment to Support Large Scale Experimentation in Software Engineering. In: IEEE International Conference on Engineering of Complex Computer Systems, 2008, Belfast, p. 193-202.

(9)         Luo, L. (2010), Software Testing Techniques - Technology Maturation and Research Strategies; In: Institute for Software Research International - Carnegie Mellon University, Pittsburgh, Technical Report 17-939A.

(10)     Poon, P.L.; Tse, T. H.; Tang, S.F.; Kuo, F.C. (2011), “Contributions of tester experience and a checklist guideline to the identification of categories and choices for software testing”, Software Quality Control 19, 1 (March 2011), pp. 141-163. DOI=10.1007/s11219-010-9109-4 http://dx.doi.org/10.1007/s11219-010-9109-4.

(11)     Itoken, J. V.; Mantyla, M,V.; Lassenius, C. (2007), “Defect Detection Efficiency: Test Case Based vs. Exploratory Testing”, In: First International Symposium on Empirical Software Engineering and Measurement, pp. 61-70, DOI 10.1109/ESEM.2007.56.

(12)     Fagan. M. (1976); “Design and Code Inspections to Reduce Errors in Program Development”. IBM Systems Journal. Riverton. NJ. V.15. n.3.p.182-211.

(13)     Brito, J.; Dias-Neto, A.C., TestCheck – A Checklist-Based Approach to Inspect Software Testing Artifacts (In Portuguese), In: Brazilian Symposium on Software Quality, Fortaleza, Junho, 2012.

(14)     Barcelos, R. F.; Travassos, G. H., “An Approach to Inspect Architectural Artifacts Based on Checklist”. In: Braziliam Symposium on Software Quality, 2006, Vila Velha.

(15)     Conte, T. U. ; Vaz, V.T. ; Massolar, J. ; Mendes, E. ; Travassos, G. H. . Improving a Web Usability Inspection Technique using Qualitative and Quantitative Data from an Observational Study. In: Simpósio Brasileiro de Engenharia de Software, 2009. v. 1., Fortaleza,  p. 227-235.

(16)     Mafra, S. N.; Travassos, G. H.; A Skeptical Discussion Regarding Experimentation in Software Engineering Based on Reading Techniques Studies. In: 2nd Experimental Software Engineering Latin American Workshop, 2005, Uberlandia, v.1.

(17)     Brito, J.; Dias-Neto, A. C.; (2012), “Conduzindo Estudos Experimentais para Avaliação de uma Técnica de Inspeção de Artefatos de Teste de Software” (in Portuguese), In: Experimental Software Engineering Latin American Workshop (ESELAW 2012), pp. 41-50, Buenos Aires.

(18)     Laitenberger, O., DeBaud, J.M., (1997). Perspective-based Reading of Code documents at Robert Bosch GmbH. Information and Software Technology, 39:781–791.

(19)     IEEE Standard 829-2008: Standard for Software Test Documentation, IEEE Press, 2008.

(20)     Sidek, R.M.; Noraziah, A.; Wahab, M.H.A.; "The Preferable Test Documentation Using IEEE 829",  In: International Conference on Software Engineering and Computer Systems (ICSECS), Vol. 181, 2011, pp.109-118.

(21)     Dias-Neto, A. C.; Travassos, G. H. . Evolving a Computerized Infrastructure to support the Selection of Model-Based Testing Techniques. In: IFIP International Conference on Testing Software and Systems (ICTSS'10), PP. 85-90, Natal, 2010.
